How to add field in existing Table using extension In D365 BC

Add field in existing Table using extension In D365 BC:

Step-01:

  • The table extension object allows you to add additional fields or to change some properties on a table provided by the Dynamics 365 Business Central service. Along with defining other fields, the table extension is where you write trigger code for your additional fields.
  • Mandatory- Extensible Property set to true can be extended.
  • Table Extension Example-
tableextension Id MyExtension extends MyTargetTable
{
fields
{
// Add changes to table fields here
}
var myInt: Integer;
}

Step-02:

  • Open Visual Studio Code  and Select “.vscode” and Add New File as shown in image.

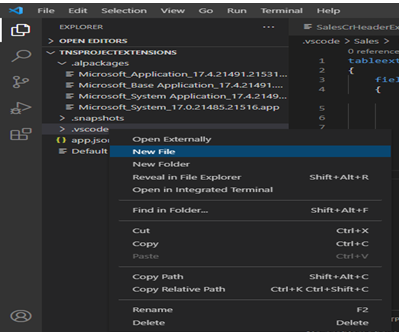

select .vscode

Step-03:

  • Enter the name of the extension as shown in image.

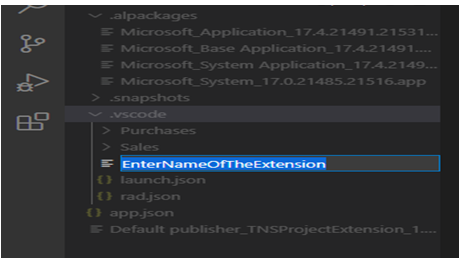

enter name of the extension
  • This table extension object extends the Sales header table object by adding a field LDClause, with ID 50000 and the data type.
  • After doing the above steps. Publish the extension.
tableextension 50012 SalesHeaderExt extends “SalesHeader”
{
fields
{
field(50000; LDClause; Boolean)
{
trigger OnValidate();
begin
if (rec.LDClause = true) then
begin
message(‘LD Clause Valid : %1’, rec.LDClause);
end;
end;
}
}

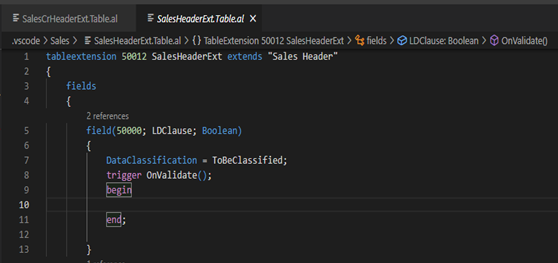

sales header extension table
